Article number
PNC00VR

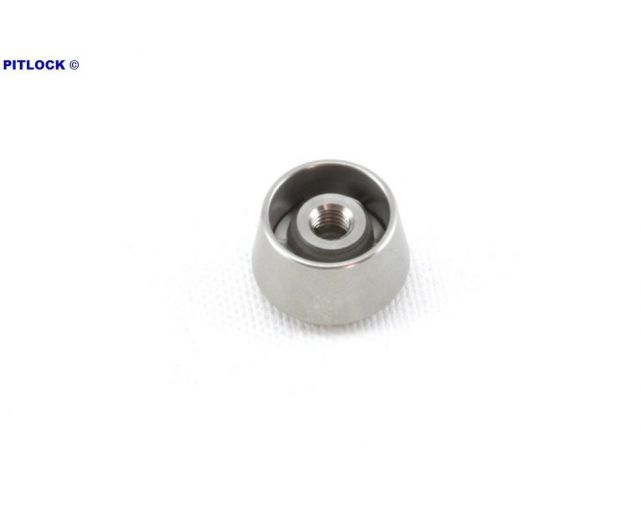

Closure M5 for wheels and headlights without axle: pressure plate, locking ring, Teflon disc, spring washer and coded nut

Home / Quick release axles addition / Seatpost addition / Lighting addition / Closure M5 for wheels and headlights without axle: pressure plate, locking ring, Teflon disc, spring washer and coded nut
As low as €16.90 €14.20
In stock

article:

Pitlock closure M5 for your Pitlock axle

material:

stainless steel, teflon

content:

1 flat pressure washer for the Pitlock running wheel axis or 1 slightly curved pressure washer for the Pitlock saddle axis, 1 security ring, 1 teflon - and spring washer, 1 coded nut

function:

The closure is the counterpart to the head of the axis and Pitlocks actual centerpiece.

variation:

  • closure running wheel art. nr. PNC00VR
  • closure saddle axis art. nr. PNC00VS



!Order only possible with codenumber!

The PITLOCK Principle

Not only the coded nut protects against theft but also the particularly designed spring washer. It anchors with our coded nut and locks the closure. In order to undo the system the Pit key is used. The Pit keys side panels press and turn the springs of the spring washer at the same time, a principle comparable to child safety locks on certain medicine bottles. Thanks to this principle on the one hand and to the chamfered coded nut on the other hand, pliers will not have a chance to break our system. In addition the conical security ring is pivoted so that it can not be cut by using force.

PITLOCK is made of certified, high-quality and stainless steel and 10 Nm are more than sufficient (not the case for solid axles) to stick the hub incl. the bicycles fork.

Keep Your Bike From Being Stolen

Dos and Don'ts to make it more difficult for thieves to succeed

Dos

  • Always mark your bicycle.
  • Always lock your bicycle (even in hallways) to a sturdy object (a wooden garden fence, e.g. would not be very suitable...).
  • Always choose carefully where you want to park your bicycle, it will determine its fate.
  • Always look for a crowded place that is lit brightly to park your bicycle, e.g. in front of the nearest pub. The same applies to railway and bus stations.
  • Always use all of the locking devices (PITLOCK security, caps, bars etc.) available.
  • Always make sure to let the locking mechanism point downwards and leave as little space as possible between the lock and the bike, so the thief will not have any direct access to it.
  • Always make sure to park and lock your bicycle in an upright position without giving the thief a chance to lay it down.
  • Always shorten the PITLOCK axle as much as possible, so it will not stick out too much.

Dont's

  • Never park your bicycle near locations that tell the thief for how long the bike will be left unattended. One example would be outside of a cinema. Here thieves can be certain to have time until the ending of the movie.
  • Try to avoid parking your bike outsides overnight.
  • A wheel lock is not secure enough, even if you are only absent for a short time. Consider purchasing the PITLOCK backups that will secure your removable bicycle parts.
  • Never put the lock close to the ground, since that position makes it easier for thieves to smash it open with a hammer.
  • Never leave any tools with your bicycle! Although these will be helpful when having a flat tire etc., but they will also be helpful for thieves.
  • Never leave your PITLOCK key with your bike.

Secure your removable bicycle parts, such as the wheels, the seat, the ahead system and the brakes with PITLOCK, so that the valuable individual parts are also secured against theft.

We would be happy to receive additional hints from you.

Do standard lengths suit my bicycle?

The PITLOCK standard axles replace customary quick releases and are suitable for most bicycles. Racing bikes are special and not a standard. Since race bikes are thinner it results that the axles protrude unfortunately.

Even though we offer a broad range of several axle lengths, we are not able to cover all sizes. At best you measure the axle first, or you contact us for our advice.

The axle thread can only be shortened with the help of a hacksaw.

Attention: Please be very careful when shortening the axle.

In case the axle thread protrudes the security rings for approximately 5 mm it is possible to install our elegant end caps.

How much does PITLOCK weigh?

A saddle axle SA 33 with closure weighs approximately 25 gr.

A front wheel axle VA 119 with closure weighs approximately 41 gr.

TA rear wheel axle HA 155 with closure weighs approximately 47 gr.

A Pit key weighs approximately 11 gr.

A set 02 with packing weighs approximately 176 gr.
